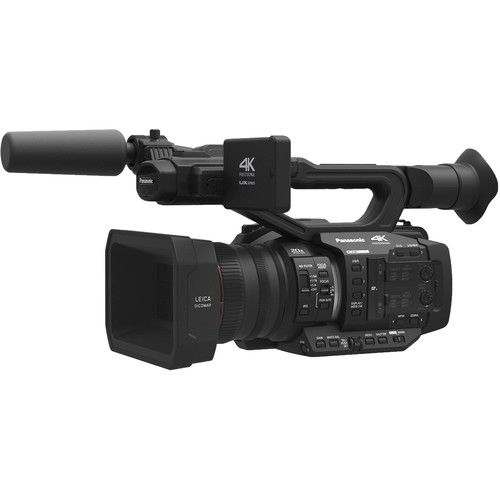

Panasonic AG-UX180 4K Premium Professional Camcorder
Special Financing available at checkout. View more details
Still Have a Questions? Ask Our Experts 855-851-5151
Your questions or feedback are always welcome
102 Accessories for Panasonic AG-UX180 4K Premium Professional Camcorder
Description
The AG-UX180 offers a bevy of other professional-level features, including dual XLRs with phantom power, SMPTE time-code generation, gamma settings for eight different scenarios, and manual control rings for iris, zoom, and focus. To monitor the status of all settings, and to perform critical focusing functions, the camcorder features both a high-quality 3.5" OLED touch screen and a full-color LCoS 0.45" viewfinder with 1,770,000 dots of resolution. It incorporates two SD slots that allow for simultaneous recording in UHD and HD (DCI 4K can only record to one SD card). You can also choose relay recording, which allows the recording to shift from one card slot to the other as the card fills up. Panasonic's background recording allows you to record continuously on one card, while starting and stopping the recording on the first card. Dual Codec recording is available allowing you to record UHD on one card and HD video on the second.
Specification
1.0-type (effective size) MOS solid state image sensor
Effective Pixels
8.79 megapixel: UHD/FHD 59.94p/29.97p/23.98p
9.46 megapixel: 4K 24p
Lens
Optical image stabilizer lens, optical 20x motorized zoom F2.8 to F4.5 (f=8.8 mm to 176 mm)
35 mm equivalent:
f=25.4 mm to 508.0 mm: UHD/FHD 59.94p/29.97p/23.98p
f=24.0 mm to 480.0 mm: 4K24.00p
Filter Diameter: 67 mm
ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64)
IR Filter: Incorporates the ON/OFF control function
Shortest Shooting Distance (M.O.D.): Approx. 1.0 m from the front lens
Gain Setting
L/M/H selector switch:
Standard mode: 0 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)
Extended ON: -3 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H); 30 dB and 36 dB switched(when assigning [S. GAIN] to the USER button)
Color Temperature Setting
ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed
When [SYSTEM MODE] = 59.94 Hz
60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec.,1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec.,1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,1/1500 sec., 1/2000 sec., 1/3000 sec.,
Shutter Speed (Cont.)
When [SYSTEM MODE] = 59.94 Hz
1/4000 sec., 1/8000 sec.24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
Shutter Speed (Cont.)
When [SYSTEM MODE] = 59.94 Hz
1/4000 sec., 1/8000 sec.24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
Shutter Speed: Slow Shutter
When [SYSTEM MODE] = 59.94 Hz
60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec., 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec. 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec
Shutter Speed: Synchro Scan
When [SYSTEM MODE] = 59.94 Hz
59.94i/59.94p mode: 1/60.0 sec. to 1/249.7 sec. 29.97p mode: 1/30.0 sec. to 1/249.7 sec. 23.98p mode: 1/24.0 sec. to 1/249.6 sec. 24.00p mode: 1/24.0 sec. to 1/249.9 sec.
When [SYSTEM MODE] = 50.00 Hz
50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec.
VFR Recording Frame Rate
When [SYSTEM MODE] = 59.94 Hz
30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps) 24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps)
SYSTEM MODE = 50.00, Hz
25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50 (fps)
Super-Slow Motion Recording
When [SYSTEM MODE] = 59.94 Hz
Shooting frame rate FHD 120 fps, Slow motion effect 1/4 speed (when 30p mode), 1/5 speed (when 24p mode)
When [SYSTEM MODE] = 50.00 Hz
Shooting frame rate FHD 100fps, Slow motion effect 1/5 speed (when 25p mode)
Sensitivity
When [HIGH SENS.] mode
F11 (2000 lx, 3200 K, 89.9 % reflect, 1080/59.94i)
F12 (2000 lx, 3200 K, 89.9 % reflect, 1080/50i)
Minimum Subject Illumination
0.2 lx (F2.8, gain 18 dB, Manual slow shutter 1/2S, When [HIGH SENS.] mode)
Digital Zoom
2x/5x/10x, i.Zoom (max. 30x)
Lens Hood
Hood with lens cover
Recording Media
SDHC memory card (4GB to 32 GB)
SDXC memory card (48GB to 128 GB), UHS-I supported
Recording Slot
Slot x 2
System Format
59.94 Hz/50 Hz
Motion Picture Recording
Recording Format: MOV, MP4, AVCHD
2 Slot Functions
Relay, Simultaneous, 2x Background, Dual codec
Still Picture Recording Mode
JPEG (DCF/Exif2.2)
Still Picture Recording
Motion Picture Playback: 8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9), 2.1M: 1920 x 1080 (16:9), 0.9M: 1280 x 720 (16:9)
Video Signal for External Output
8bit 4:2:2
Recording Video Signal
8bit 4:2:0
Video Compression Format
MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
Video Compression Format
MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
Recording Audio Signal
48 kHz/16 bit 2CH
Audio Signal Format
LPCM (MOV/MP4), Dolby Digital (AVCHD)
Audio Signal Format
LPCM (MOV/MP4), Dolby Digital (AVCHD)
Headroom
12 dB
Recording Method
MOV, MP4
Recording Format
When FHD 50 Mbps mode:
Main-Recording side (MOV/MP4): UHD 29.97p/25p/23.98p 100Mbps
Sub-Recording side (MOV/MP4): FHD 29.97p/25p/23.98p 50Mbps
When FHD 8 Mbps mode:
Main-Recording side (MOV/MP4): UHD 29.97p/25p/23.98p 100 Mbps; FHD 59.94p/50p/29.97p/25p/23.98p 200Mbps; FHD 59.94p/50p 100Mbps
Sub-Recording side MOV FHD 59.94p/50p/29.97p/25p/23.98p 8Mbps
Recording Time
FHD 50Mbps:
32 GB: Approx. 1 hour 20 min 64 GB: Approx. 2 hour 40 min 128 GB: Approx. 5 hours 20 min
FHD 8Mbps:
32 GB: Approx. 8 hours 30 min 64 GB: Approx. 17 hours 10 min 128 GB: Approx. 35 hours
Video SDI Out
BNC x 1, 0.8 V [p-p], 75 O, 3 G/1.5 G, HD SDI, SD SDI supported
Output format: 1080/59.94p LEVEL-A/50.00p LEVEL-A, 80/29.97PsF/25.00PsF/24.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i
Video Out
AV connector x 1
Video Input/Output: HDMI
Type A connector x 1, VIERA Link not supported v
Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
Built-in Microphone
Stereo microphone
XLR Input
XLR (3-pin) x 2 (INPUT1, INPUT2)
Input high impedance, LINE/MIC/MIC+48V (switchable SW)
LINE: +4 dBu/0 dBu (switchable menu)
MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
Audio: SDI Output
2 ch (LPCM) switchable gain: 0 dB/-6 dB/-12 dB
Audio Output: HDMI
2 ch (LPCM)
Audio Out
V connector x 1, Output level: 600 ohms, 316 mV
Headphone
3.5 mm diameter stereo mini jack
Speaker
20 mm diameter, round
Camera Remote Input/Output
2.5 mm diameter super mini jack x1 (ZOOM, S/S)
3.5 mm diameter mini jack x1 (FOCUS, IRIS)
TC Preset In/Out:
BNC x 1, Used as the input and output terminals
Input: 1.0 V to 4.0 V [p-p] 10 KOhms
Output: 2.0 V +/- 0.5 V [p-p] low impedance
USB 3.0 Host
Standard-A connector, 9-pin, external media device connection, bus power supported
USB 3.0 Device
Micro-B connector, 10-pin, Mass storage function (read only)
DC IN 12V
DC 12V (11.4V to 12.6V) EIAJ Type4
LCD Monitor
3.5 type LCD color monitor, Approx. 1,150,000 dots
Viewfinder
0.39 type OLED (organic EL display); Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots
Power
DC 7.28 V (when the battery is used)
DC 12 V (when the AC adaptor is used)
Power Consumption
19.7 W (when the LCD monitor is used)
Operating Temperature
0 to 40 deg. C (32 to 104 deg. F)
Operating Humidity
10 % to 80 % (no condensation)
Dimensions (W x H x D)
173 x 195 x 346mm (6.81 x 7.68 x 13.62") (excluding protrusion and eye cup)
173 x 195 x 392mm (6.81 x 7.68 x 15.43") (including eye cup, excluding protrusion)
Product Includes
