Featuring an impressively high-resolution 32.5MP APS-C CMOS sensor, the 90D is capable of producing imagery with notable clarity and dynamic range, as well as a broad sensitivity range of ISO 100-25600 and low noise to support working in difficult lighting situations. The sensor and image processor also realize fast performance throughout the camera system, including the ability to shoot continuously at up to 10 fps, record UHD 4K30p video, or record high-speed Full HD 1080p video at 120 fps.

Benefitting stills shooting with the optical viewfinder, a wide-area 45-point all cross-type phase-detection autofocus system provides quick and precise focusing in difficult lighting conditions down to -3 EV. For working with telephoto lenses fitted with extenders, 27 of the points are capable of focusing down to f/8 and the center dual cross-type offers increased precision at brighter aperture values. The cross-type design of the sensors affords greater accuracy in low-contrast and mixed lighting conditions, and the broad coverage of the 45 sensors is ideal for tracking and maintaining focus on moving subjects. Making use of the 45-points is a series of four AF area selection modes, including single-point AF; Zone AF, where you can select from one of nine AF zones; Large Zone AF, which offers a choice of three selectable zones; and 45-point AF auto selection, which allows the camera to select a single point automatically.

When recording video or shooting in live view, a Dual Pixel CMOS AF system is employed that features 5481 selectable autofocus points. This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. Dual Pixel CMOS AF integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.

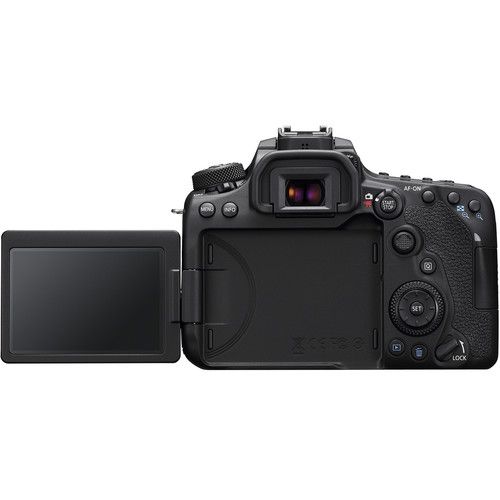

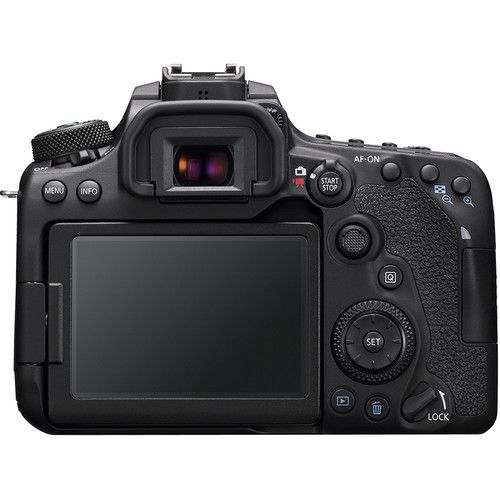

• Touchscreen 3.0" 1.04m-dot LCD monitor features a vari-angle design to permit working from high and low angles and the touchscreen design facilitates intuitive control over menu navigation and touch-to-focus operation.
• The pentaprism type optical viewfinder offers 100% frame coverage for high compositional accuracy when shooting at eye-level. Additionally, further aiding shooting with the viewfinder, AF points and mode, compositional grids, a horizontal electronic level, and other assistive features can be displayed during use.

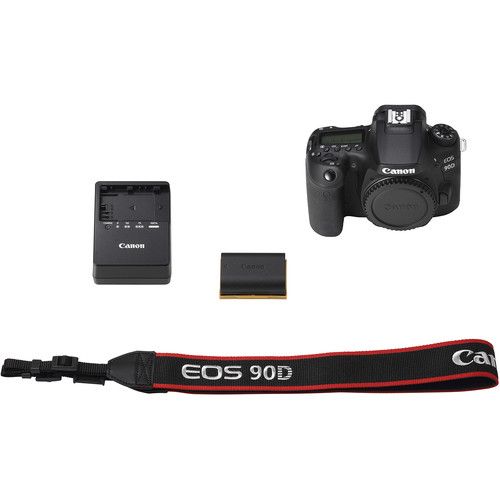

• Included LP-E6N battery provides approximately 1300 shots per charge.
• Built-in Wi-Fi allows for easy wireless sharing of both photos and movies to a linked mobile device and Bluetooth connectivity permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities when using the Canon Camera Connect app. This app also enables a mobile raw-editing workflow for greater post-production freedom.

• In-camera 4K time-lapses can be produced, along with 4K frame grabs for effectively shooting 8MP stills at up to 30 fps.
• A revised 220000-pixel AE metering sensor benefits both autofocus and exposure metering precision and enables Color Tracking for more accurately detecting skin colors.
• EOS iTR autofocus provides face detection for refined focus control when shooting portraits.
• Electronic shutter function permits working with shutter speeds up to 1/16000 of a second.

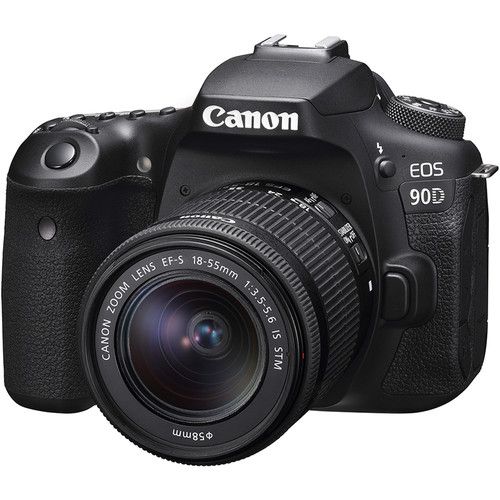

Included with the camera body is the EF-S 18-55mm f/3.5-5.6 IS STM lens, which provides a 28.8-88mm equivalent focal length range. One aspherical element is featured in the optical design to limit distortion and spherical aberrations in order to realize a high degree of sharpness and clarity. A Super Spectra coating has also been applied to reduce lens flare and increase contrast and color fidelity when working in bright lighting conditions. Benefitting both photo and video applications, an STM stepping AF motor is used to realize quick and near-silent autofocus performance along with full-time manual focus override. Additionally, a four-stop-effective Image Stabilizer system is also featured and minimizes the appearance of camera shake for sharper handheld shooting.
